Requires the following permission groups:

• FAE-NHX6018-nhxfac_rfcal

Module hardware design files

FCC-CE-SRRC Radio Certification Test Method

• Modulation Wave
• Single-carrier

---

SRRC

Wi-Fi frequency range

2.4GHz-2.483GHz
5.15~5.35GHz
5.47～5.725GHz
5.725GHz-5.850GHz

TX/ RX Configration

frequency range	TX	RX
2.4GHz-2.483GHz	2TX	2RX
5.150to5.250GHz	2TX	2RX
5.250to5.350GHz	2TX	2RX
5.470to5.725GHz	2TX	2RX
5.725to5.850GHz	2TX	2RX

Wi-Fi modulation technology

OFDM：BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps
DSSS： DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps
MIMO-OFDM(11n)：MCS 0-31
MIMO-OFDM(11ac)： MCS 0-9
MIMO-OFDM(11ax)： MCS 0-11

Wi-Fi modulation mode

11b：DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps
11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac/ac wave2：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM
11ax：MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM

Maximum transmit power

5GHz: 23dBm
2.4GHz: 23dBm

Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations

---

FCC/CE

Wi-Fi frequency range

2.400to2.4835GHzISM
5.150to5.250GHzU-NII-1
5.250to5.350GHzU-NII-2A
5.470to5.725GHzU-NII-2C
5.725to5.850GHzU-NII-3/ISM

Note: The available bands and channels are dependent on the configured regulatory domain (country)

TX/ RX Configration

frequency range	TX	RX
2.4GHz-2.483GHz	2TX	2RX
5.150to5.250GHz	2TX	2RX
5.250to5.350GHz	2TX	2RX
5.470to5.725GHz	2TX	2RX
5.725to5.850GHz	2TX	2RX

Wi-Fi modulation technology

OFDM：BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps
DSSS： DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps
MIMO-OFDM(11n)：MCS 0-31
MIMO-OFDM(11ac)： MCS 0-9
MIMO-OFDM(11ax)： MCS 0-11

Wi-Fi modulation mode

11b：DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps
11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac/ac wave2：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM
11ax：MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM

Maximum transmit power

5GHz: 26dBm
2.4GHz: 26dBm

Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations

---

DFS

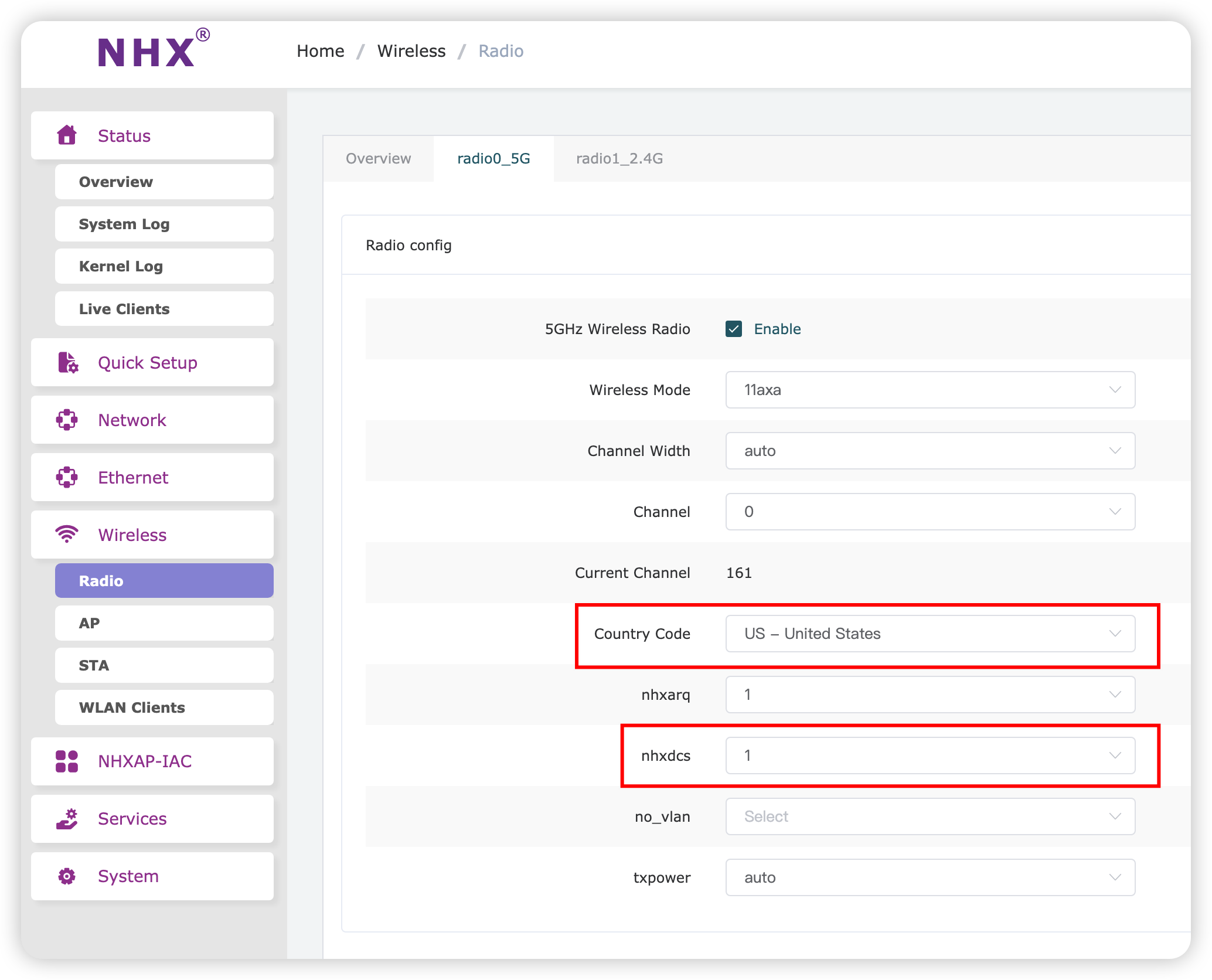

• enable nhxdcs

Note: DFS takes effect depending on the configured regulatory area (country)
